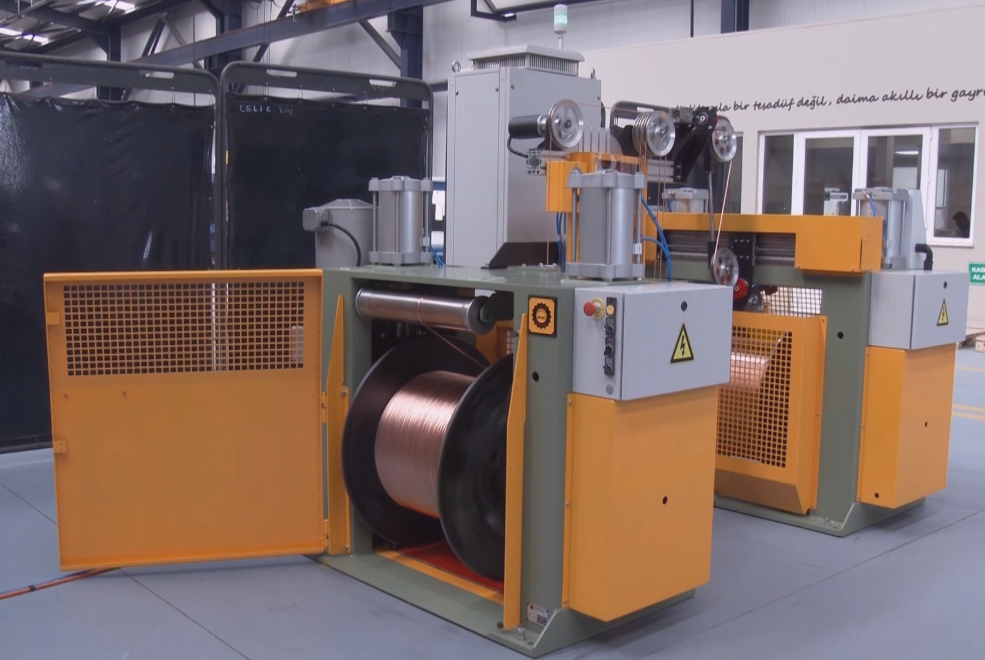

SAM-D Rewinding Line

SAM-D REWINDING LINE MAIN CHARACTERISTICS

  • Loading and unloading of reel is performed automatically by pneumatic cylinder
  • Pintle type design, of which one is fixed and the other is pneumatically activated
  • Motor speed control by frequency inverter controlled by magnetic flux vector
  • Wire tension is maintained fixed until the reel is relieved from its fully loaded position
  • Wire tension control is normally effected by pneumatic dancer and PID controlled inverter
  • Dancer control by inductive analog switch
Get Offer

Or directly send an email to : marketing@sarmakina.com.tr

SAM-D Rewinding Technical Specifications

TECHNICAL SPECIFICATIONS SAM-D 800 → 630
Line Speed 600 m/min.(max)
Conductor Diameter min.(7×0,10) multi wire
max.(56×0,30)
Tension 400 N (max)
Motor Power 5,5kw (pay-off)+5,5kw (spooler)
Supply Voltage 380 V / 50 Hz
Compressed Air 4 – 10 bar
Machine Dimensions (LxWxH) 2725x1750x1950
REEL DIMENSIONS (Acc. to DIN 46397)
Flange Diameter 800 (max)
Barrel Diameter 400
Bore Diameter 127 mm
Traverse Width 550 mm (max)
Total Width 600 mm (max)
Weight 1000 kg (max)
