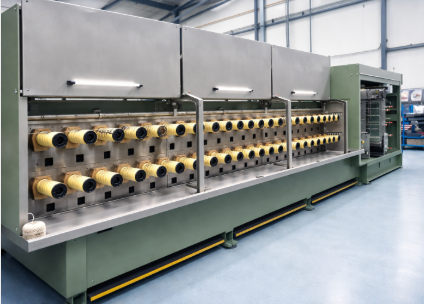

SCTC Multiwire Drawing Machine

SCTC Multiwire Drawing Machine MAIN CHARACTERISTIC

• The machine is designed with a dual-motor drive system to enable fast and efficient die sequence changes. Both motors are synchronized through the automation system.
• Capstan speed control is managed by a programmable preset dual-motor control system, ensuring stable and precise wire drawing performance.
• Bearing housings of the multiwire drawing line are manufactured in cast construction, while the machine base frame and lower tank section are produced from welded steel fabrication.
• The drawing direction is completely horizontal, providing stable wire guidance without directional deviation.
• Gear reducers used in the drive system are hardened heavy-duty industrial gearboxes, selected for long service life under demanding operating conditions.
• Both gearboxes and bearings are equipped with a circulation-type lubrication system.

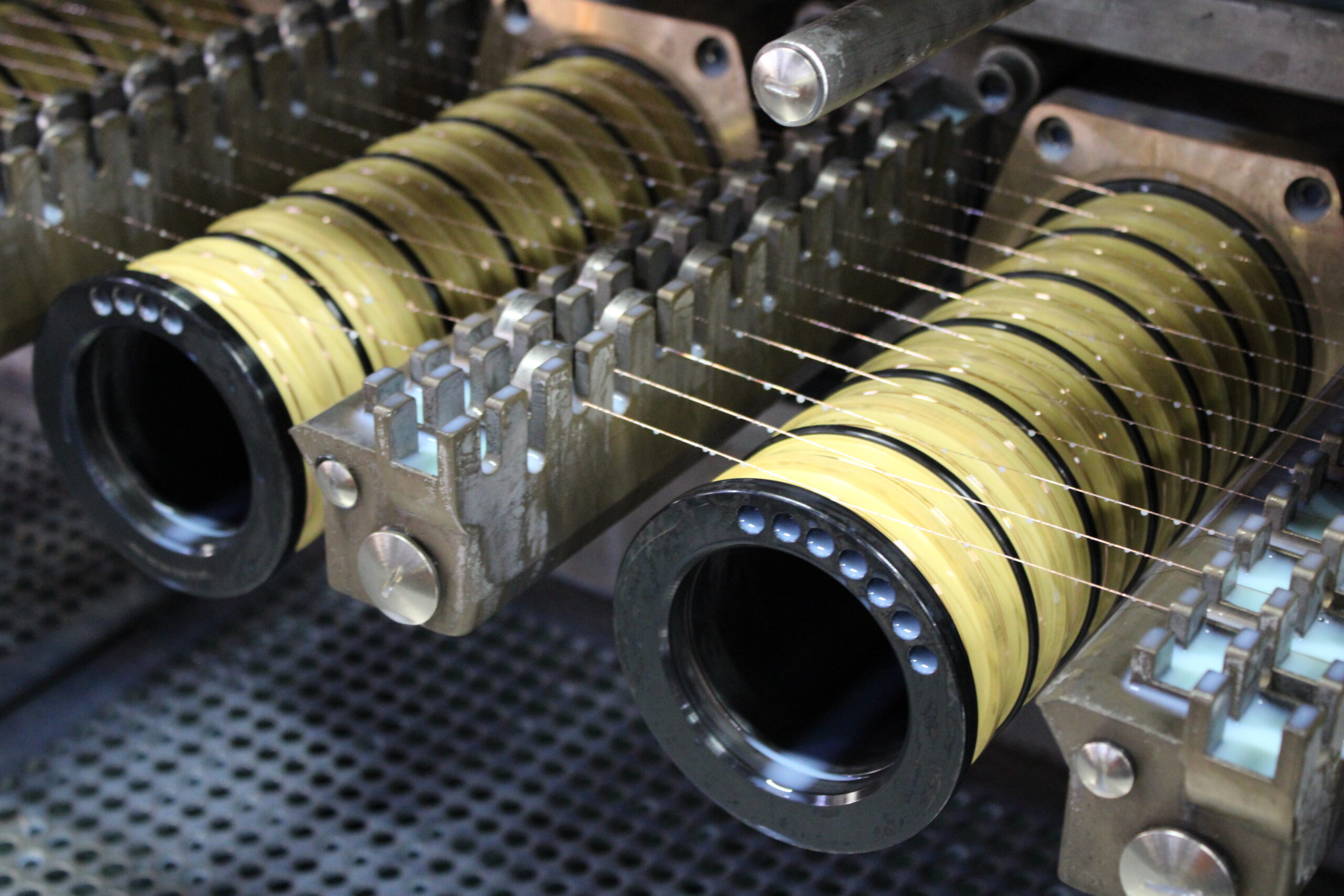

• Each capstan is equipped with dedicated dies and coolant nozzles to ensure efficient and uniform lubrication during operation.
• Suitable for copper and tin-plated copper wire drawing applications.
• In tin-plated copper wire drawing operations, production capacity may decrease by approximately 20%, depending on process conditions.
