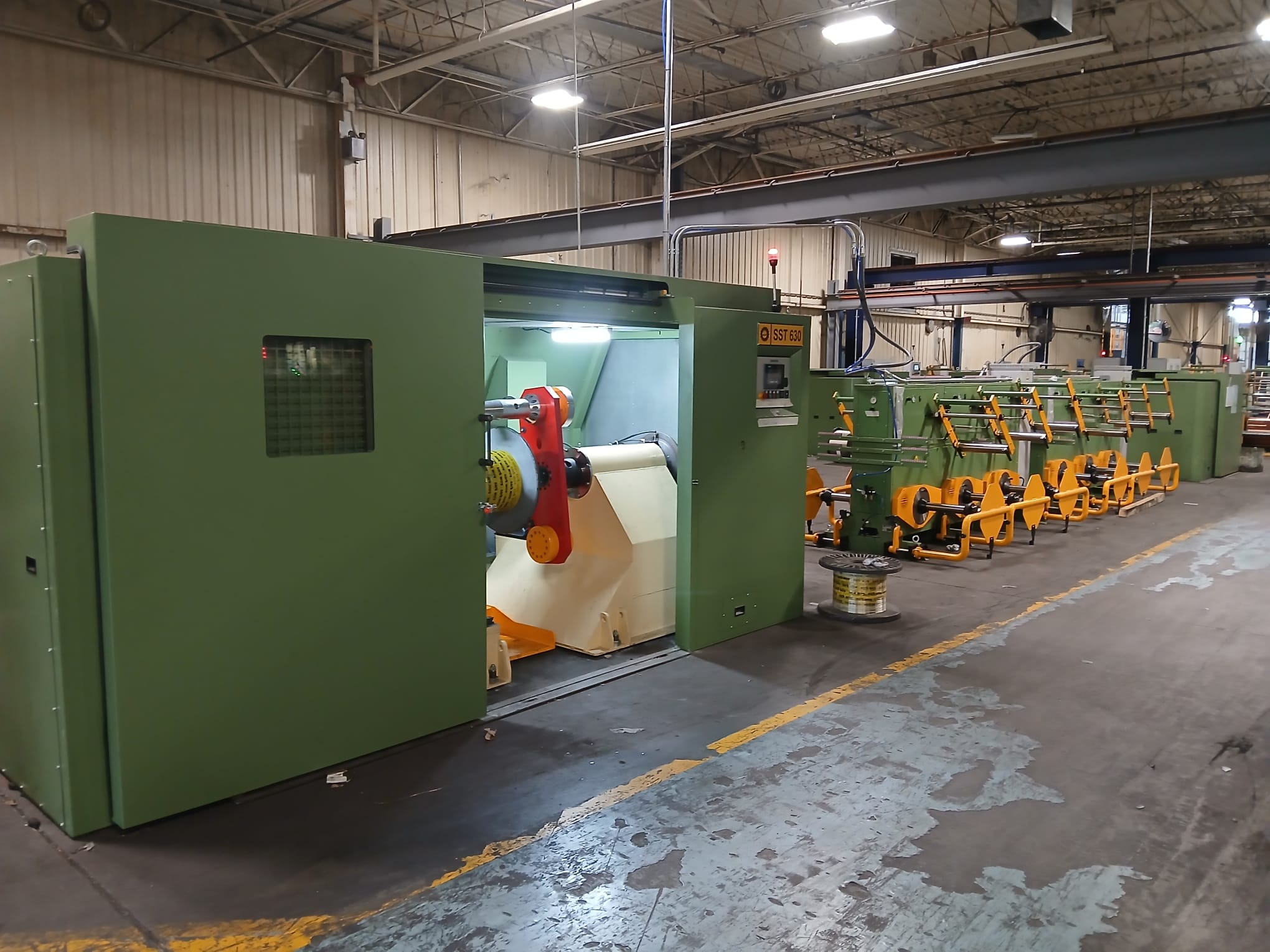

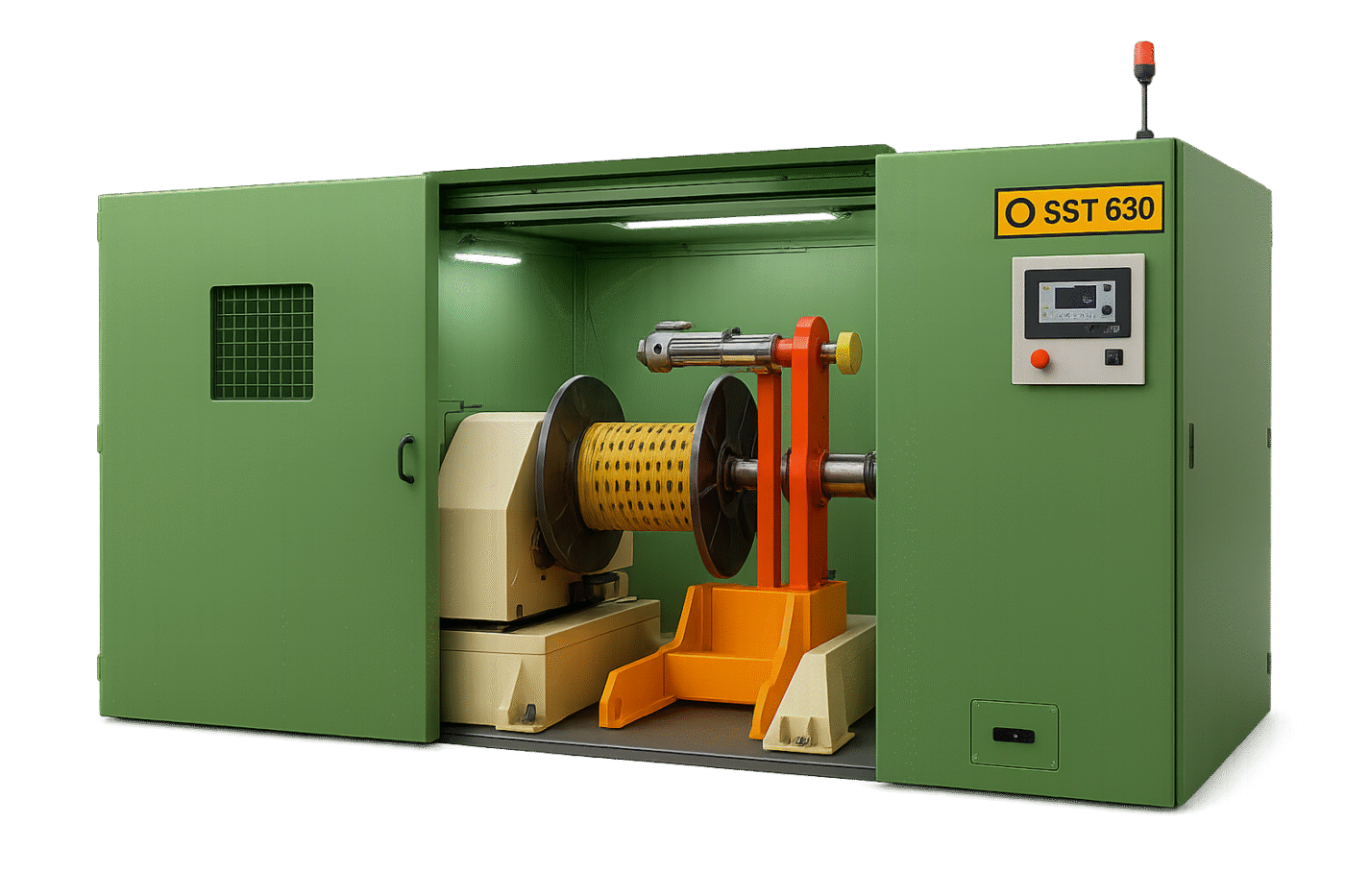

SST Single Twist Bunching Machine

SST Single Twist Bunching Machine is an indispensable, versatile, and high-quality cable and bunched wire production machine designed for specialized cable and wire manufacturing facilities.

The single twist bunching machine is used for bunching of flexible, concentric, and insulated cables or wires.
The SST single twist bunching machine is also suitable for copper wire screening applications.

The machine frame is manufactured from stress-relieved welded steel construction, and the main machine bearings are machined on high-precision machine tools.

The bunching arm is specially designed to reduce aerodynamic loads at high rotational speeds and is manufactured from special alloy materials.

The reel is supported by a shaft mounted on a sliding carriage; the carriage speed determines the pitch of the cable winding on the reel.
The reel carriage features a pre-tensioned mechanical locking system on the shaft, ensuring mechanical safety and user-friendly operation.

The reel lifting platform is mounted on linear guide bearings, and lifting is carried out safely by a screw system driven by a motor-reducer unit.

The machine cabin is specially designed, providing resistance to mechanical impacts and incorporating special insulation for soundproofing.

Speed, lay length, traverse range, and reel limits are adjusted via an HMI mounted on the machine.

Technical Features:

• The single-twist bunching arm drive system and reel winding system are driven by AC motors.

• The traverse unit is driven by a servo motor with a reducer.

• The reel lifting platform is driven by an AC motor with a reducer.

• Robust and rigid construction.

• Lay length adjustment is infinitely variable via servo motor.

• The cabinet is equipped with sound insulation and safety interlocks.

• In the length-measuring unit, the rotation speed of the measuring pulley is counted by an encoder.

• When the preset length is reached, the entire system stops automatically.
